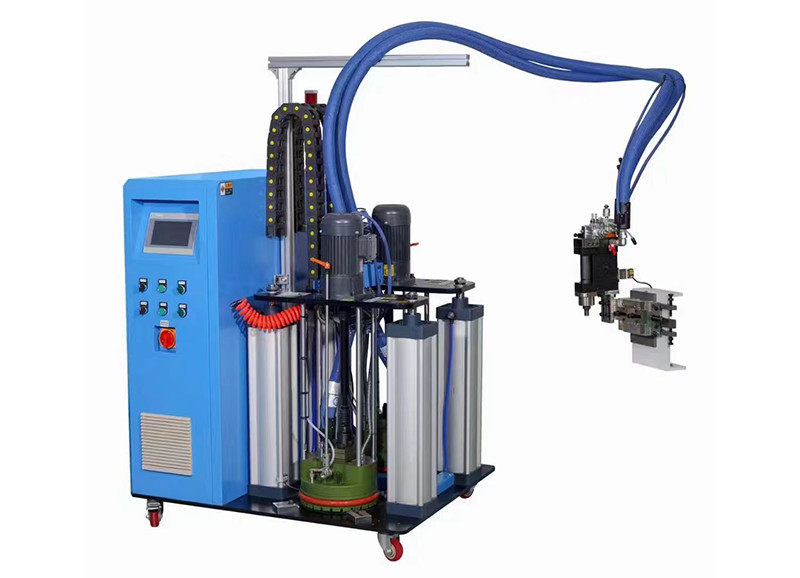

PUR glue melting device
Technical Parameters
| Capacity | 5 Gallon, 20L |
| Glue tank Diameter | 280mm/286mm |
| Gluing Speed | 15kg/ hour |
| Feed glue road | 2 |
| Power | 5KW (7HP) |
| Temprature | 25-180 degree |
| Overall size | 1065*750*1700mm |
Double colors type
There are two models of PUR glue melting device, both of which use self-cleaning glue boxes. One can hold two colors of glue,The demand for convenient production of two types of glue conversion, and the other can only hold one color。
Double colors type
There are two models of PUR glue melting device, both of which use self-cleaning glue boxes. One can hold two colors of glue, and the other can only hold one color
Single color type
(When the process has not changed, you can only choose this color model, which will lower the price)
Quick glue release
The outlet design of the large caliber rubber hose can accurately control the glue release, ensuring stable glue release
Quick glue release
The outlet design of the large caliber rubber hose can accurately control the glue release, ensuring stable glue release
Safety protection
low-temperature pump pneumatic protection, system pump glue overvoltage protection, and over stability protection function
Renderings of connecting edge banding machines, The machine is also equipped with a elf-cleaning glue box, which is currently used by most domestic manufacturers in China.
Renderings of connecting edge banding machines, The machine is also equipped with a elf-cleaning glue box, which is currently used by most domestic manufacturers in China.
The difference between PUR and EVA
1.The main component of PUR is isocyanate terminated polyurethane prepolymer, and the main component of EVA Hot-melt adhesive, that is, the basic resin is copolymerized by ethylene and vinyl acetate under high pressure, and then mixed with tackifier, viscosity regulator, antioxidant, etc. to make Hot-melt adhesive.
2. Different characteristics:
The adhesion and toughness of PUR can be adjusted, and it has excellent adhesion strength, temperature resistance, chemical corrosion resistance, and aging resistance. EVA Hot-melt adhesive is usually a solid at room temperature. When heated to a certain extent, it melts into a liquid. Once cooled below the melting point, it quickly becomes a solid again.
