HK612B Six side cnc drilling machine
Product Video
Technical parameters
| Length of X-axis clamp guide rail | 5400mm |
| Y-axis stroke | 1200mm |
| X-axis stroke | 150mm |
| Max speed of X-axis | 54000mm/min |
| Max speed of Y-axis | 54000mm/min |
| Max speed of Z-axis | 15000mm/min |
| Min processing size | 200*50mm |
| Max processing size | 2800*1200mm |
| Number of top drilling tools | Vertical drilling tools 9pcs*2 |
| Number of top drilling tools | Horizontal drilling tools 4pcs*2(XY) |
| Number of bottom drilling tools | Vertical drilling tools 6pcs |
| inverter | inovance inverter
380V 4kw* 2 set |
| Main spindle | HQD 380V 4kw* 2 set |
| Workpiece thickness | 12-30mm |
| Drilling package brand | Taiwan brand |
| Machine size | 5400*2750*2200mm |
| Machine weight | 3900kg |
Precision machining
The frame is precision machined using a machining center.
The heavy-duty machine body is meticulously welded and undergoes annealing and aging treatment.
The 5.4-meter extended beam is made of thickened box-section beams.
It is welded to form a strong and rigid structure.
Precision drill pack
Taiwan Hongcheng drilling bag, the internal use of mainly imported accessories, stable processing
Two upper drilling bags + one lower drilling bag (with 6 drill bits)
Servo motor + screw drive
Inovance servo motor
Inovance absolute value AC servo control, paired with Xinbao reducer, with an accuracy of ±0.1mm.
Taiwan Ande Guide Rail
Lightweight Slider Rail Smooth and precise operation, strong wear resistance and rigidity
High load-bearing capacity
Japanese Shinbao Reducer
High precision, low noise, strong rigidity
Easy maintenance, long service life
Exclusive Pneumatic Control
Traditional spring control is prone to wear and tear
Upgraded technology adopts pneumatic control for vertical movement
Maintains long-term precision
Thickened 6mm drill package with air pipe to prevent inconsistent drilling depth
Guaranteed drilling depth
Self-developed pressure plate
Vertical drilling integrated pressure plate device
Horizontal drilling pressure plate inside the drilling package
Multiple sets of pressure wheels are evenly stressed to avoid damaging the plate material.
Accurate transmission positioning
Diameter 30mm lead screw + German 2.0 module high-precision helical gear, with better rigidity and higher precision
Gapless copper bushing for positioning cylinder
Lower beam adopts dual guide rails for more stability
Double clamp clamping material
Pneumatic double clamp smoothly feeds the board
Automatically adjusts the clamping position according to the length of the board

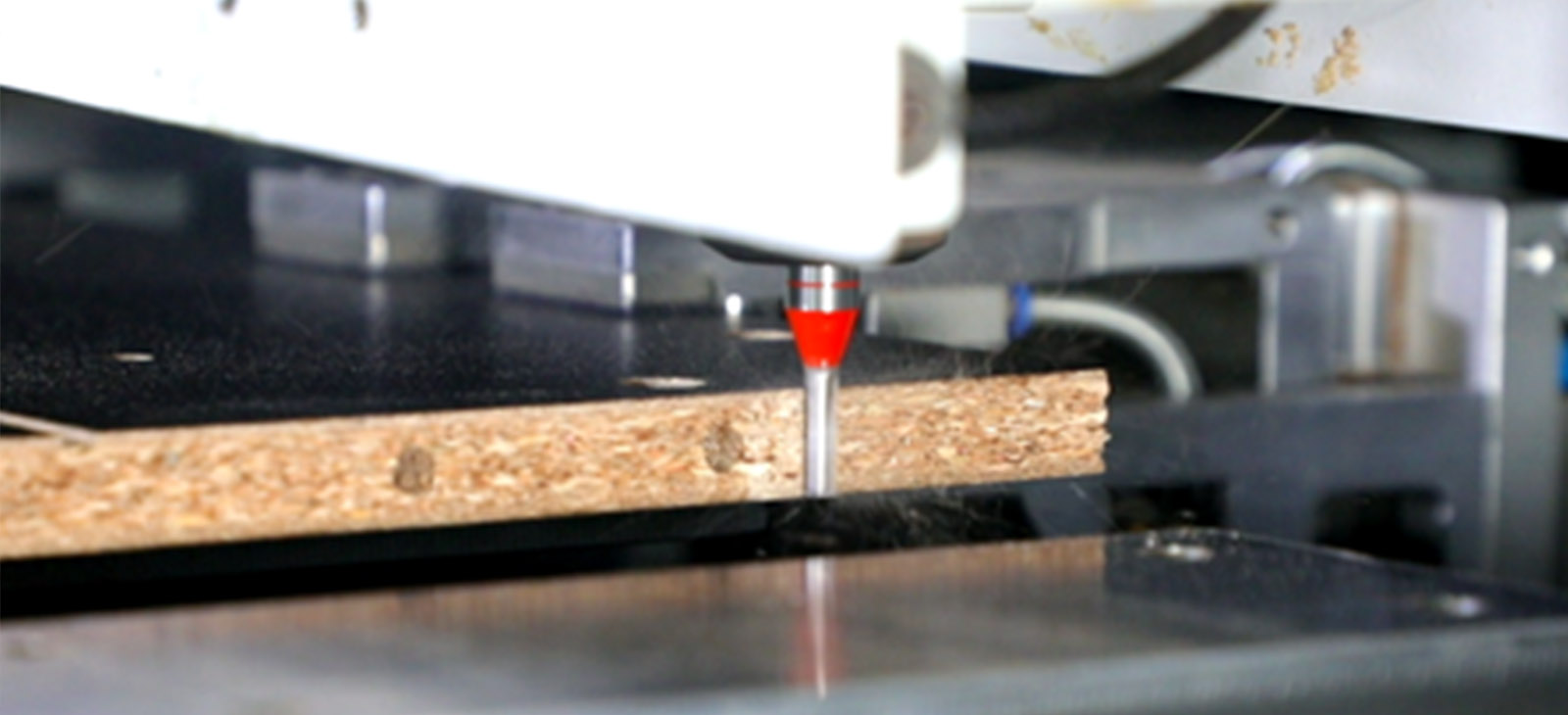

Six-sided processing
Can complete drilling, milling, slotting, and cutting of irregular shapes in one operation
Minimum processing size for the plate is 40*180mm
Dual drilling package can process with a minimum hole spacing of 75mm.
Chrome-plated processing tabletop
The processing countertop is fixed as a whole in front.
When drilling horizontal holes, the back can be moved.
To prevent tilting and ensure stable processing.
Widen the air float platform
Widened air flotation platform 2000*600mm widened air flotation platform
Effectively protects the surface of the sheet from scratching
Optional loading and unloading modes: front in/front out or rear out Can be connected to a rotating line.
Intelligent Industrial Control Integration
Intelligent Industrial Control Integration ,Scan Code Processing
High level of automation, simple and easy-to-learn operation.
Original system software
19-inch large screen operation, Heidemeng control system
20-Equipped with CAM software, can be connected to cutting machine/edge banding machine
Automatic oil supply system
Fully automatic high-pressure gear electric oil pump
Microcomputer-controlled automatic oil supply
Fully enclosed dust-proof design
The solenoid valve is protected by an independent cover
It is not prone to dust accumulation, less susceptible to damage, and has a longer lifespan
The lead screw drive adopts a fully enclosed dust-proof design
Ensuring long-term precise operation and reducing failure rate
Core Advantages
2+1 drilling package mode
The 2+1 drilling package mode, consisting of vertical drilling, horizontal drilling, and reaming with the main spindle, can improve efficiency by 30%.
Core Advantages
Diversified Processing

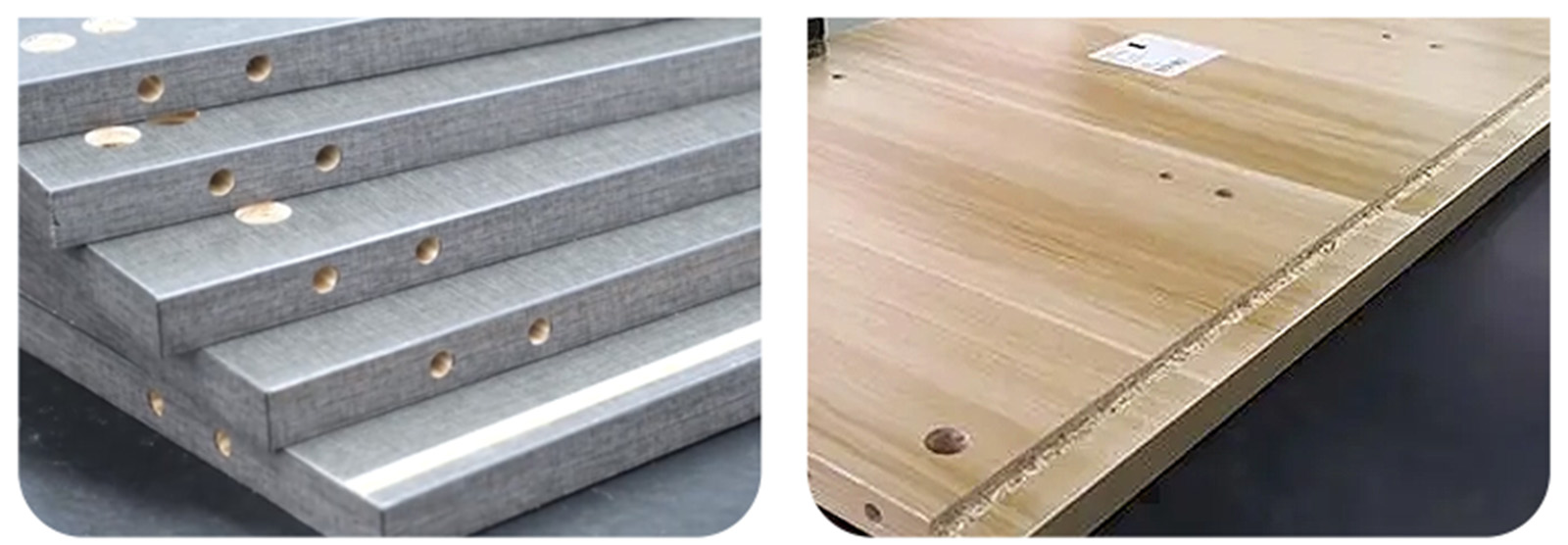

Six-sided processing, including drilling, slotting, milling, and cutting, to achieve diversified processing.
Core Advantages
Drilling Workstation
Designed in a pass-through configuration, it can be used for multiple machines to work together, forming a drilling center workstation and achieving streamlined operations.
Core Advantages
High efficiency and high productivity
100 sheets can be processed in 8 hours per day with six-sided drilling and grooving.
