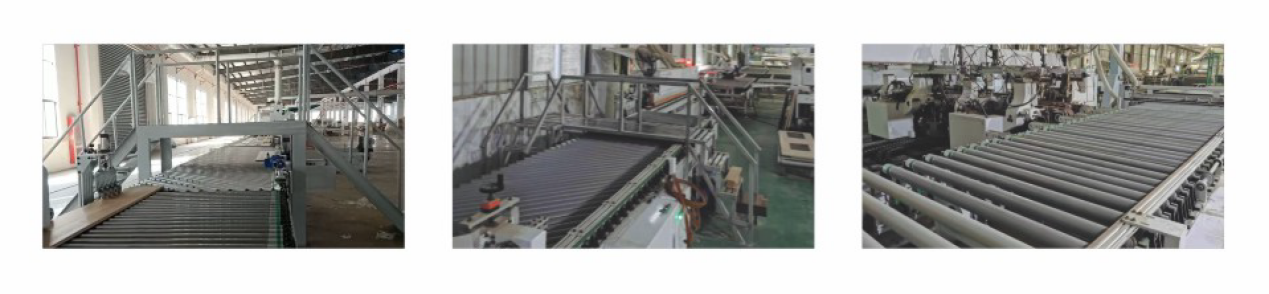

Edge Banding Machine Connection
1.The main beam is made of high-strength aerospace aluminum,which meets the ICE161131 international standard
2.The roller adopts German high-strength cutting-resistant 2mm sleeve rubber process
3.Electric parts adopt German brand Schider
4.Adopt Taiwan Delta Detla PLC control system
5.Pneumatic components adopt Taiwan Yadek
6.American Carlisle rubber timing belt drive,no noise,smooth transmission
7.The upper and lower cones are covered with Swedish PU soft rubber,and the size can be customized
8.Italy Libo elastic belt and timing belt drive,smooth and low noise-
A:Gantry Sucker Assembly,Bonus board mechanism,Rotate the suction cup assembly by90°,Segmented roller table separating mechanis
B:Double-row diagonal rollers connected left and right
C:90°cone steering
D:Single row of inclined rollers connected left and right
E:Gantry Feeder
Main parameters
Workpiece height 950+50mm
Workpiece length 200-2800mm
Workpiece width 200-1220mm
Workpiece thickness 10-60mm
Max.Load 100kg
Speed 14-40 meters/minute (M/min)
