Automatic Customized Panel Furniture Production Line
Features

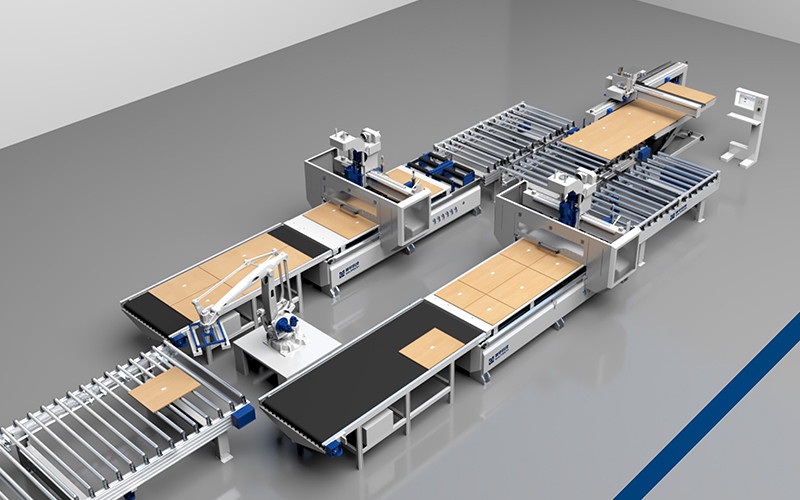

Forklift delivering plates to elevator → Labeling machine grabbing and auto labeling plates → Cutting machine drilling, grooving and cutting plates → Robot grabbing plates and delivering plates to translation power live-roller gear → plates entering into cache bin and waiting to be delivered to edge banding unit.

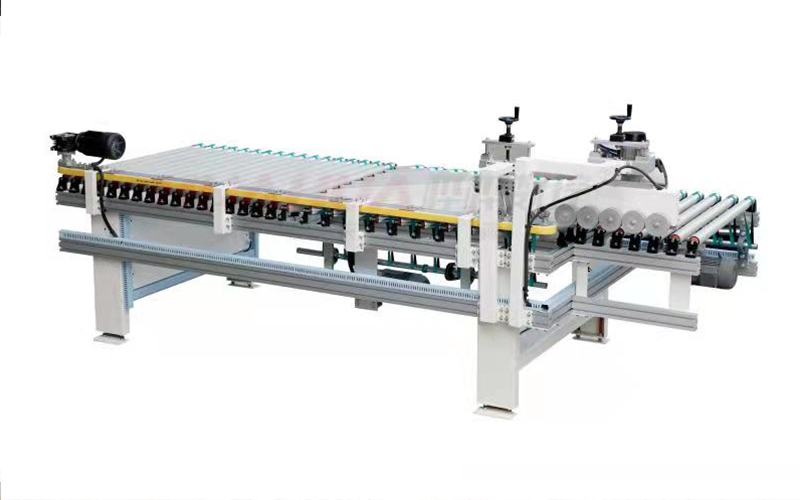

Single Row Feeder
Machine lengt: 3000×1400×950±50mm; Net weight: 1200kg; conveying speed: 10-60m/min; instead of manual feeding, the distance between the board and the board is automatically controlled
Single Row Feeder
Machine lengt: 3000×1400×950±50mm; Net weight: 1200kg; conveying speed: 10-60m/min; instead of manual feeding, the distance between the board and the board is automatically controlled

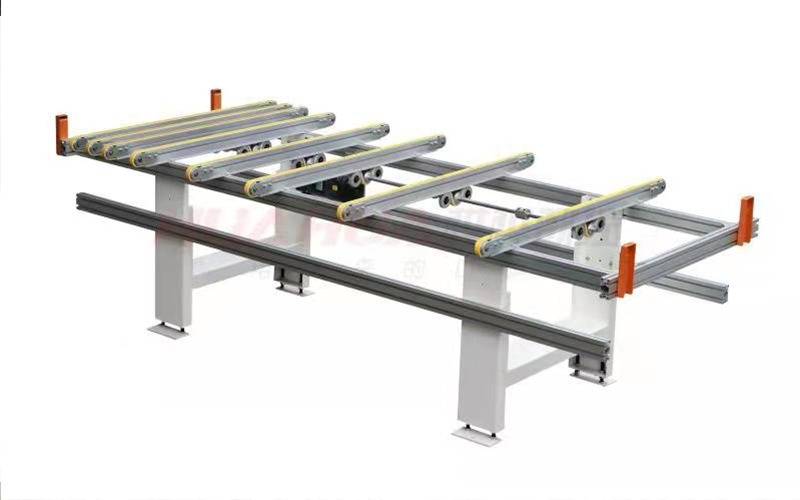

Belt Cross Conveyor
Conveying speed: 10-60m/min; equipment size: 2100×1400×950±50mm; net weight: 300kg; total power: 0.75kw;

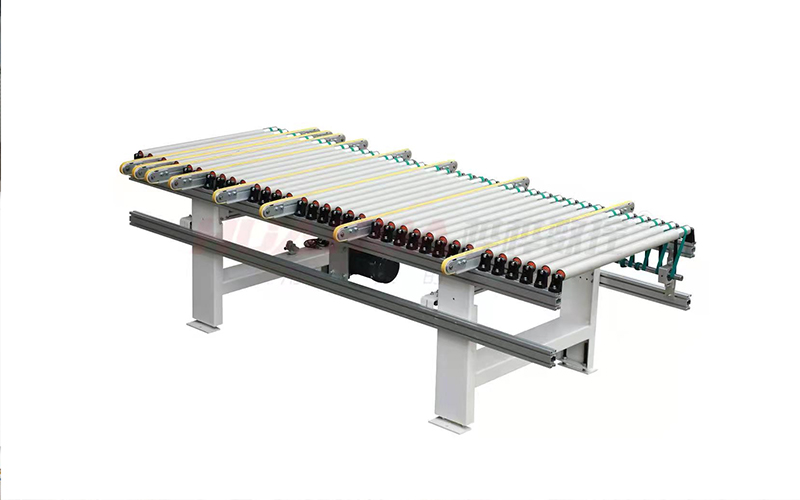

Double Row Feeder
Conveying speed: 10-30m/min; drum run out: within 0.5mm; equipment size: 3600×280×950±50mm; net weight: 1800kg; total power: 2.25kw;
Double Row Feeder
Conveying speed: 10-30m/min; drum run out: within 0.5mm; equipment size: 3600×280×950±50mm; net weight: 1800kg; total power: 2.25kw;

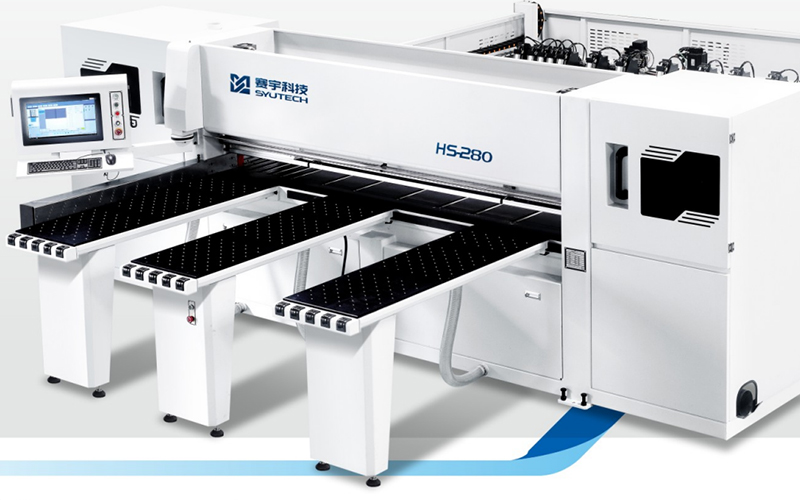

High Speed Intelligent Computer Beam Saw
Saw Carriage Speed 0-120m/min Maximum Cutting thickness 120mm;
Two Fingers Clamp with Plastic Cushion, more Stable for Small Panel Clamping and Feeding;
Scoring Saw can be adjusted according to different cutting thickness and width, automatic sawing strake can be positioned.

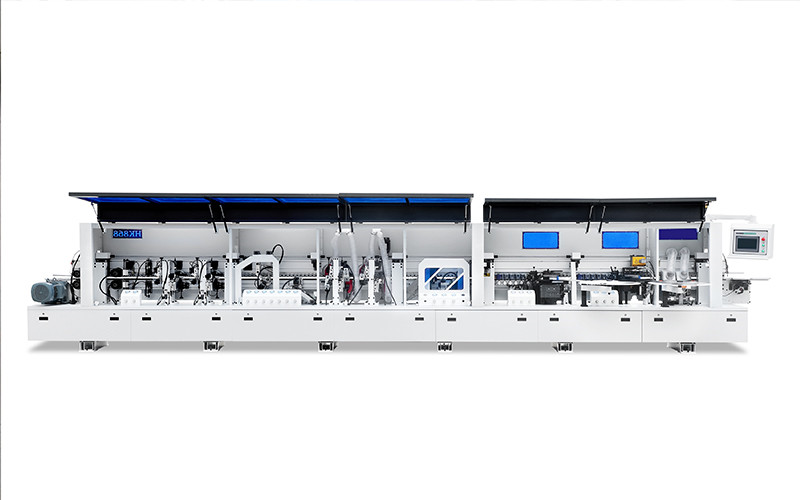

High-speed linear edge banding machine
No fear of glue line problems;
Multifunctional high-speed edge banding to meet various edge banding needs;
Optional glue machine and four-channel tape change;
PUR glue machine, glue pot device, new design for fast sol, make the edge banding effect more perfect.
High-speed linear edge banding machine
No fear of glue line problems;
Multifunctional high-speed edge banding to meet various edge banding needs;
Optional glue machine and four-channel tape change;
PUR glue machine, glue pot device, new design for fast sol, make the edge banding effect more perfect.

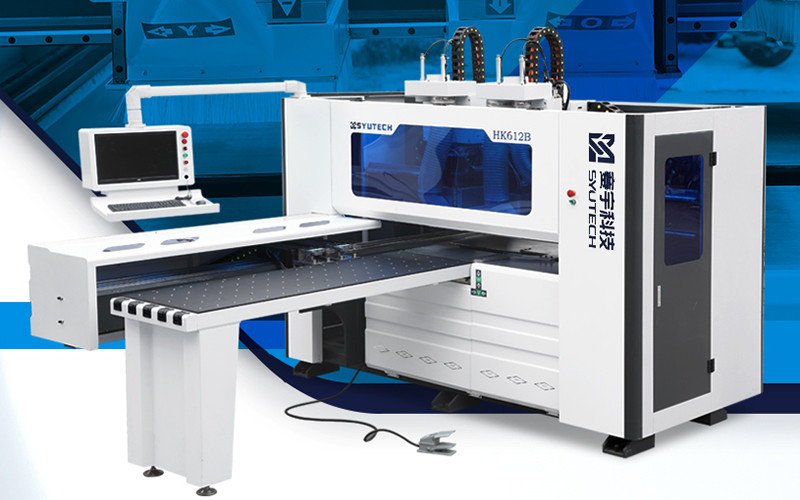

Automatic six sides CNC drilling machine
Six sides drilling and milling Continuous through type high-efficiency processing;
One time processing can complete all holes on six sides and double sides grooving for fast and efficient drilling and milling work;
Bottom dust collection device collect the scraps of the panel to ensure smooth processing;

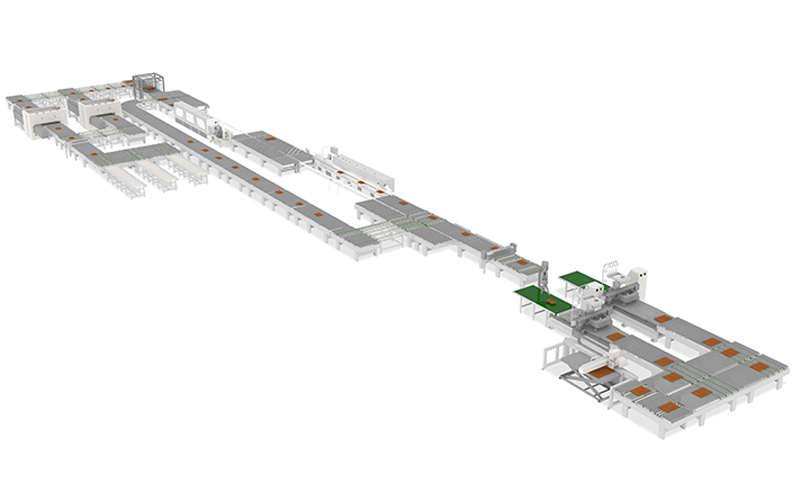

Scheme Pictures

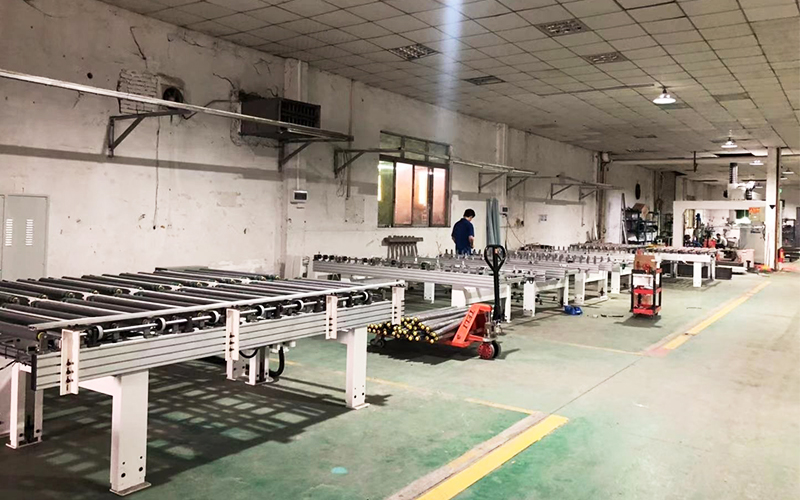

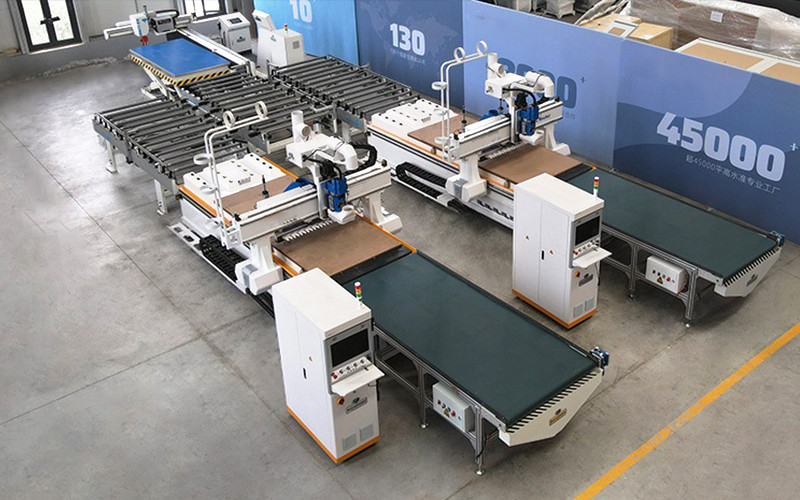

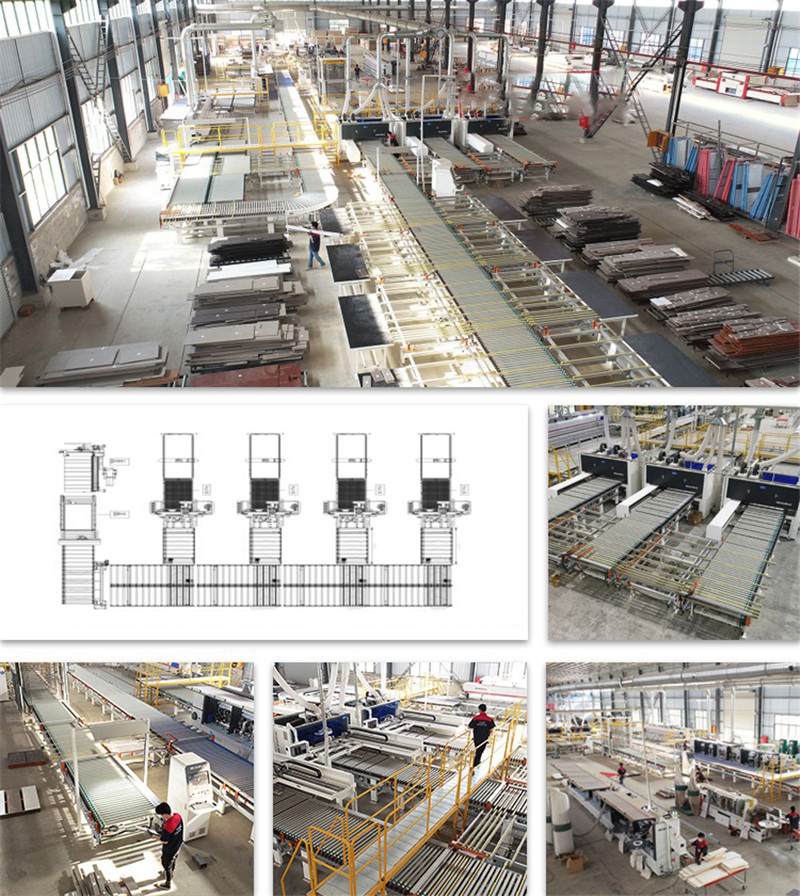

Customer Case
